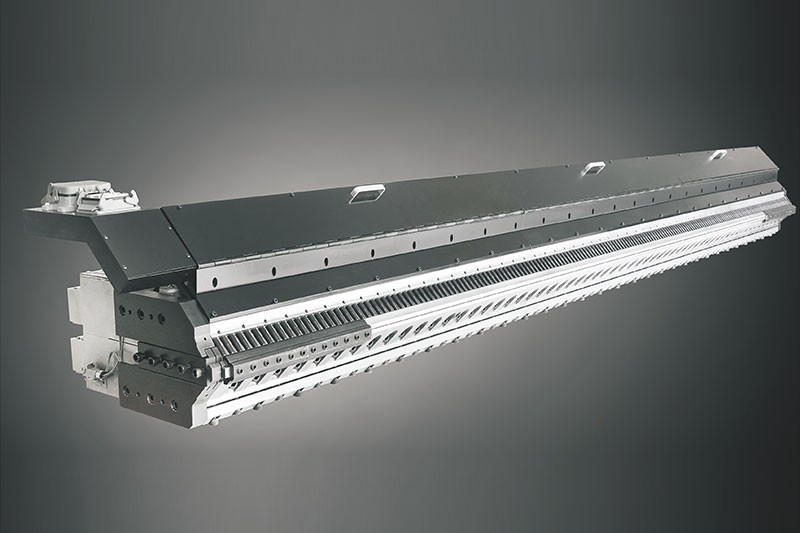

A continuous and unobstructed flow surface can be obtained at the die lip. The adjusting screws with small intervals act on the pressure of the resin and the up and down rebound of the metal. The die lip can be bent to adjust the die gap.
Get a quoteWith movable die, coarse adjustment is possible.
With 45-degree flow blocking strip, material flow can be adjusted. Suitable for the production of 1-8mm waterproof membrane.
Applicable to: PE, PA, PP, PET, ABS, PS and other materials.
Mold width 1000mm-10000mm.
Features: Automatically adjust the die lip and quickly adjust the die discharge gap, the discharge is smooth and even, the adjustment is flexible and convenient, and the material distribution outlet adjustment can produce products with large thickness differences on the same unit.
The mold uses a hanger-type flow channel inside, and the mold uses a 45-degree inclined flow control rod adjustment device to facilitate the adjustment of the flow size and speed inside the die head. A full set of stainless steel high-temperature resistant heating tube constant temperature devices are used to save power consumption to the maximum extent.
Get a quoteAlloy tool steel with small thermal deformation and good stability is used after quenching and tempering, and the inner and outer surfaces are polished, hard chrome plated, and ground.
